Most pages of floor plan examples are galleries. This one is a reading guide. Below are plans produced by Rendimension, each annotated with what it demonstrates and what to look for, followed by the criteria we use to judge whether a plan is doing its job.
The reason to care: a 3D floor plan is frequently the first thing a prospective buyer or tenant looks at, and it is the asset most often produced carelessly. Knowing what separates a usable plan from a decorative one is worth something whether you commission the work from us or from anyone else.
If you are looking for scope, process, and pricing rather than evaluation criteria, the 3D floor plan rendering service page covers that directly.

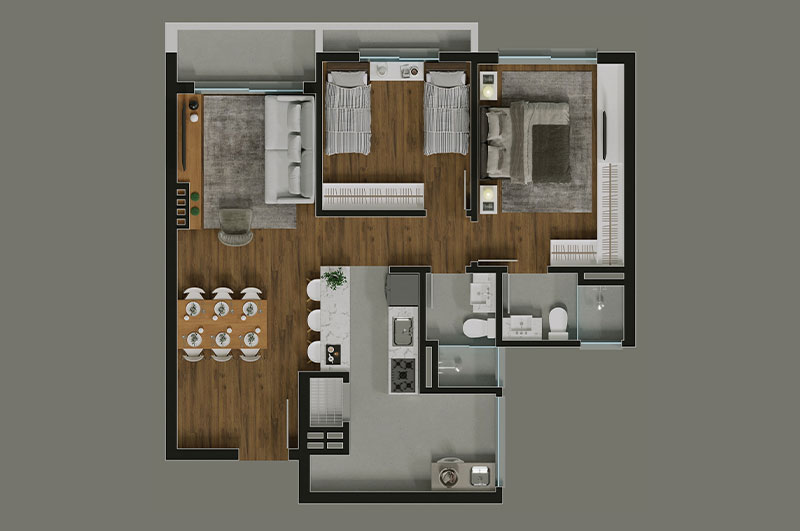

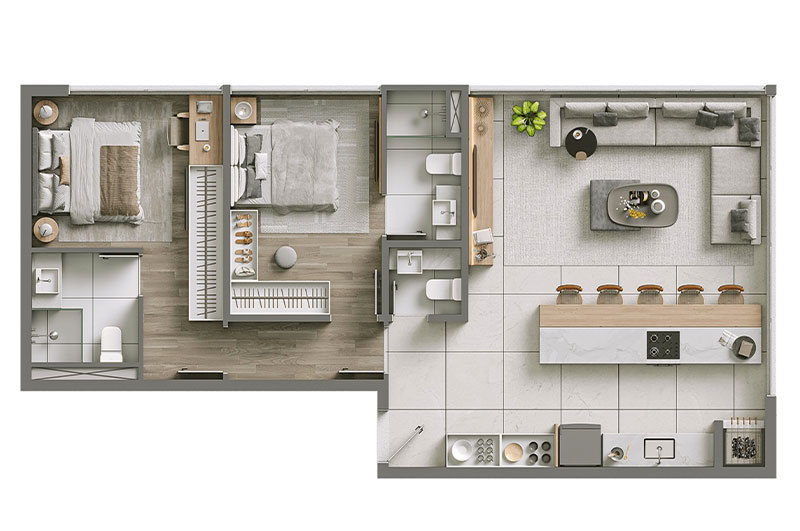

Look at the furniture first. Every piece here is sized against real product dimensions, so the sofa reads as a sofa in a room of that width rather than as a shape that fills the space. This is the single fastest way to tell a competent plan from a decorative one: undersized furniture makes rooms look larger and is the most common form of dishonesty in unit marketing.

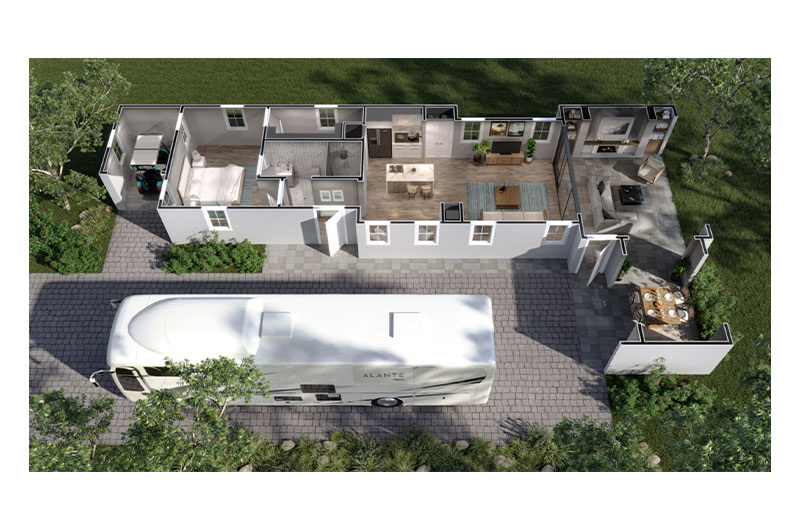

Most floor plans stop at the exterior wall. This one does not: the RV pad, the paving, the patio, and the planting are modeled alongside the unit. That matters for any product where the site is part of what is being sold, outdoor hospitality and RV resorts especially, because the question a prospect is really asking is not what the unit contains but how the unit and its outdoor space work together. Cutting the plan at the wall line would have answered the wrong question.

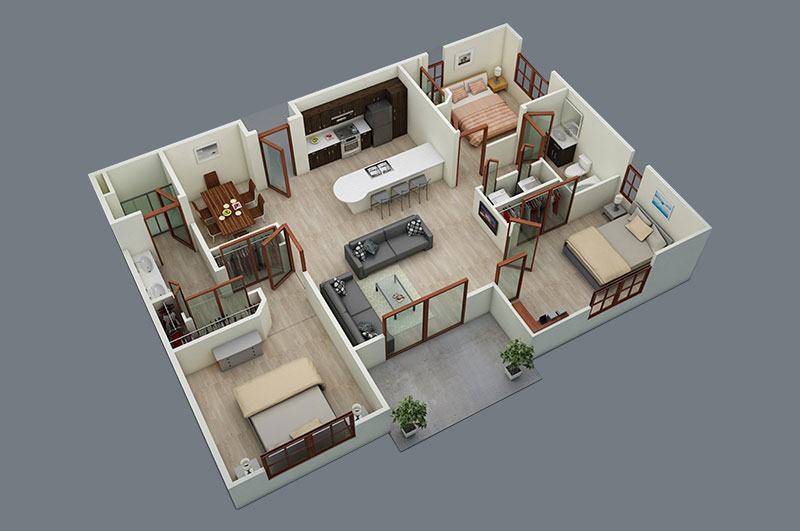

The angled projection reveals wall height, which gives the layout volume and makes it feel like a place rather than a diagram. Now look at the cost of that: the walls nearest the viewer partially obscure what sits behind them. This is the tradeoff isometric always carries, and it is why we recommend overhead for leasing sets where units get compared against each other, and isometric for a single hero unit where the plan is meant to impress rather than to be measured.
Apply these to any plan, ours or otherwise. They are ordered by how badly each one damages the plan when it is wrong.
A queen bed is 60 by 80 inches. A dining chair needs roughly 36 inches of pull-out clearance behind it. A sofa is rarely under 72 inches wide. When furniture in a plan is quietly reduced by ten or fifteen percent, rooms read as more generous than they are, and no untrained viewer will catch it. This is the defect that causes the most damage, because it is only discovered when someone walks the finished unit and it feels smaller than they expected.
Walls drawn as single lines make a plan read as a diagram. Walls with real poché, filled thickness that reflects actual wall assemblies, make it read as a building. This also carries information: an interior partition and an exterior wall are not the same thickness, and showing the difference tells a viewer something true about the structure without a label.
Trace a path from the entry to each room. If furniture placement forces a route that a person could not physically take, the plan is decorative rather than functional. Viewers rarely articulate this problem, but layouts that fail it produce a vague sense that something is wrong with the unit, which is worse than a specific objection because it cannot be addressed.
Flooring should change where it would change in construction: at thresholds, between wet and dry zones, at the edges of defined areas in an open plan. Doing this well means the plan communicates zoning without needing text labels on every room. Doing it arbitrarily, changing material for visual variety, actively misinforms.
Within a single plan, shadows should fall in one direction from one implied light source. Across a set of plans, that direction should stay the same from unit to unit. Inconsistency here is subtle enough that viewers cannot name it and obvious enough that it registers as carelessness, which they then attribute to the development rather than to the drawing.
Plans are viewed on phones, embedded in listing sites at reduced size, and printed in brochures. Room names and dimension text that are legible at full resolution and unreadable at listing thumbnail size are a common and entirely avoidable failure. We size type against the smallest realistic display size rather than the largest.
Three presentation styles cover almost all commercial and residential work. The choice is driven by what the viewer needs to do with the plan, not by which looks best in isolation.
A true top-down view. Every unit reads at an identical angle, which makes a set scannable: a prospect can flip between a one-bedroom and a two-bedroom and compare them directly. This is the correct default for multi-unit leasing sets and for any situation where the viewer is choosing among options. It sacrifices any sense of vertical volume.
An angled projection that reveals wall height and gives the plan volume and weight. Better for a single flagship unit, a custom home, or a penthouse where the plan needs to feel aspirational rather than comparative. The tradeoff is real: angled projection means some areas are partially obscured by walls, and units in an isometric set are harder to compare against each other.
A perspective view with the roof and selected walls removed. The most immediate of the three and the least useful as a document, since perspective distortion means the plan can no longer be used to judge relative room sizes accurately. Appropriate for a hero marketing image, inappropriate as the only plan a buyer receives.
One rule that matters more than the choice itself: do not mix styles within a set that will be compared. A prospect flipping between an isometric one-bedroom and an overhead two-bedroom is comparing drawings, not units.
A worthwhile question to ask before commissioning one, because floor plans are frequently bought to answer questions they structurally cannot answer.
It cannot sell finish quality. A plan shows that a countertop exists and roughly what colour it is. It cannot convey the difference between a good stone and an ordinary one, which on high-end residential work is frequently the entire value proposition. That is a rendering problem.
It cannot convey light. The quality of daylight in a room, how it moves across the day, what the space feels like at dusk, is invisible in plan. For projects where light is the selling point, and for most luxury residential it is, the plan qualifies the buyer and something else has to close them.
It cannot convey sequence. A plan shows the layout all at once, which is the opposite of how a building is experienced. If the argument for a project is the experience of moving through it, that is a walkthrough.
It cannot answer follow-up questions. A plan is fixed. If a remote buyer wants to go back and look at the kitchen again from a different angle, they cannot, and for pre-construction sales to remote or international buyers that limitation is exactly what an interactive tour exists to solve.
None of this is an argument against floor plans. It is an argument for knowing which question you are trying to answer before you buy an asset to answer it.
The six criteria above apply everywhere. What varies is which of them carries the most weight, and that depends entirely on what the plan is being asked to do.
Furniture scale is not one criterion among six here, it is the whole job. In a compact unit the difference between honest and flattering furniture is the difference between a layout that works and one that does not, and it is the plan's entire purpose to answer whether a real bed, a real sofa, and a real dining surface can coexist. Under-scaling furniture in a studio is not a cosmetic decision, it is a misrepresentation of the product.
Consistency dominates. A prospect comparing six unit types is running a comparison, and any variation in view angle, lighting direction, material palette, or labelling introduces noise into that comparison. The individual plan being excellent matters less than the set being uniform. This is also where overhead views earn their place over isometric.
Circulation and the relationship to outdoor space carry the argument. At this level the buyer is usually not asking whether their furniture fits, they are evaluating how the house lives: how the entry sequence works, how the primary suite is separated, how interior space connects to a terrace or pool. Isometric or cutaway presentation is more defensible here, since the plan is a hero asset rather than a comparison tool.
Circulation again, but for a different reason: throughput rather than comfort. A restaurant plan has to demonstrate service routes and seat count. A hotel floor has to demonstrate how guests reach rooms and how staff reach service areas. Furniture in these plans is closer to equipment than to décor, and getting clearances right matters more than making the arrangement look inviting.
The audience is an underwriting committee, not a resident. Plans need to communicate unit mix and repeatability across the community rather than the charm of any single unit. Uniformity and legibility at small reproduction size, since these end up in decks, matter more than visual appeal.
Floor plan work is more forgiving of incomplete documentation than rendering or animation, because the plan itself carries most of the information needed. Still, a few things change the result substantially.
Floor plans in PDF or CAD, with dimensions legible. If the plans are dimensioned, we work from those dimensions rather than scaling off the drawing, which is more accurate and removes a category of error entirely.
If you do not provide any, we furnish to demonstrate that each room works at true scale, which is the safe default. If the units are being marketed to a particular buyer profile, or if there is a staging standard the development follows, tell us. Reworking furniture across a set after the fact is avoidable effort.
Flooring is the one that matters most in plan view, since it is the largest visible surface and it does the zoning work. Wall colour and cabinetry finish are secondary in a top-down view. If the finish schedule is not settled, tell us the intended character and we will confirm in review.
This determines type sizing and level of detail, and it is the input clients most often omit. Plans destined for a listing thumbnail need different labelling from plans going into a printed brochure or a large-format sales-centre display. If the same set has to serve all three, say so, and we will size against the most restrictive case.
Sets are cheaper per plan than individual commissions, because the material palette, lighting setup, labelling convention, and furniture vocabulary are established once and reused. Commissioning three plans now and four more later costs more than seven at once, and risks the second batch not matching the first.
A 2D plan is a technical document that assumes the reader can convert lines into space, which most buyers and many investors cannot do reliably. A 3D floor plan removes that conversion step by showing furniture at true scale, material differences between zones, and the actual proportions of each room. Nothing is added to the information, it is made legible to a non-technical audience. For construction, permitting, and coordination, the 2D plan remains the correct document.
Overhead (a true top-down view) is best for comparing units against each other, because every plan reads at the same angle and buyers can scan a set quickly. It is the correct default for a multi-unit leasing set. Isometric adds an angled projection that shows wall height and gives a stronger sense of volume, which suits a single hero unit or a custom home where you want the plan to feel like a place rather than a layout. Mixing both within one set makes units harder to compare, so pick one per set.
Enough to establish scale and demonstrate that the rooms work, and no more. Every additional object is a decision a buyer might disagree with, and an over-styled plan starts reading as an interior design proposal rather than an accurate representation of the space. The functional minimum is the pieces that prove a room can do its job: a bed of the correct size in the bedroom, a dining table with chairs that have pull-out clearance, seating with real circulation around it.
No, they answer different questions. A floor plan answers "how is this laid out and will my furniture fit," which is a spatial and practical question. A rendering answers "what does it look like standing in it," which is a material and atmospheric question. Most pre-sales campaigns need both, because the plan qualifies the buyer on layout and the rendering sells them on finish. If you can only fund one, the plan is usually the better first purchase for multifamily and the rendering for luxury single-family.
Furniture scaled down to make rooms look bigger. It is easy to do, hard for a layperson to detect, and it damages trust at exactly the wrong moment, when a buyer walks the finished unit and it feels smaller than the marketing implied. The second most common is shadows cast in inconsistent directions across a set of plans, which is a subtle cue that reads as sloppiness even when a viewer cannot say why.
Yes, and consistency is the point of a set rather than a nice-to-have. Every plan in a leasing set should share the same view angle, lighting direction, material palette, labeling convention, and furniture vocabulary, so that when a prospect compares a one-bedroom against a two-bedroom they are comparing the units and not the drawings. See the 3D floor plan service page for how sets are scoped and priced.
