Architectural Drafting Services and Construction Documents

Drawing Deliverable Types

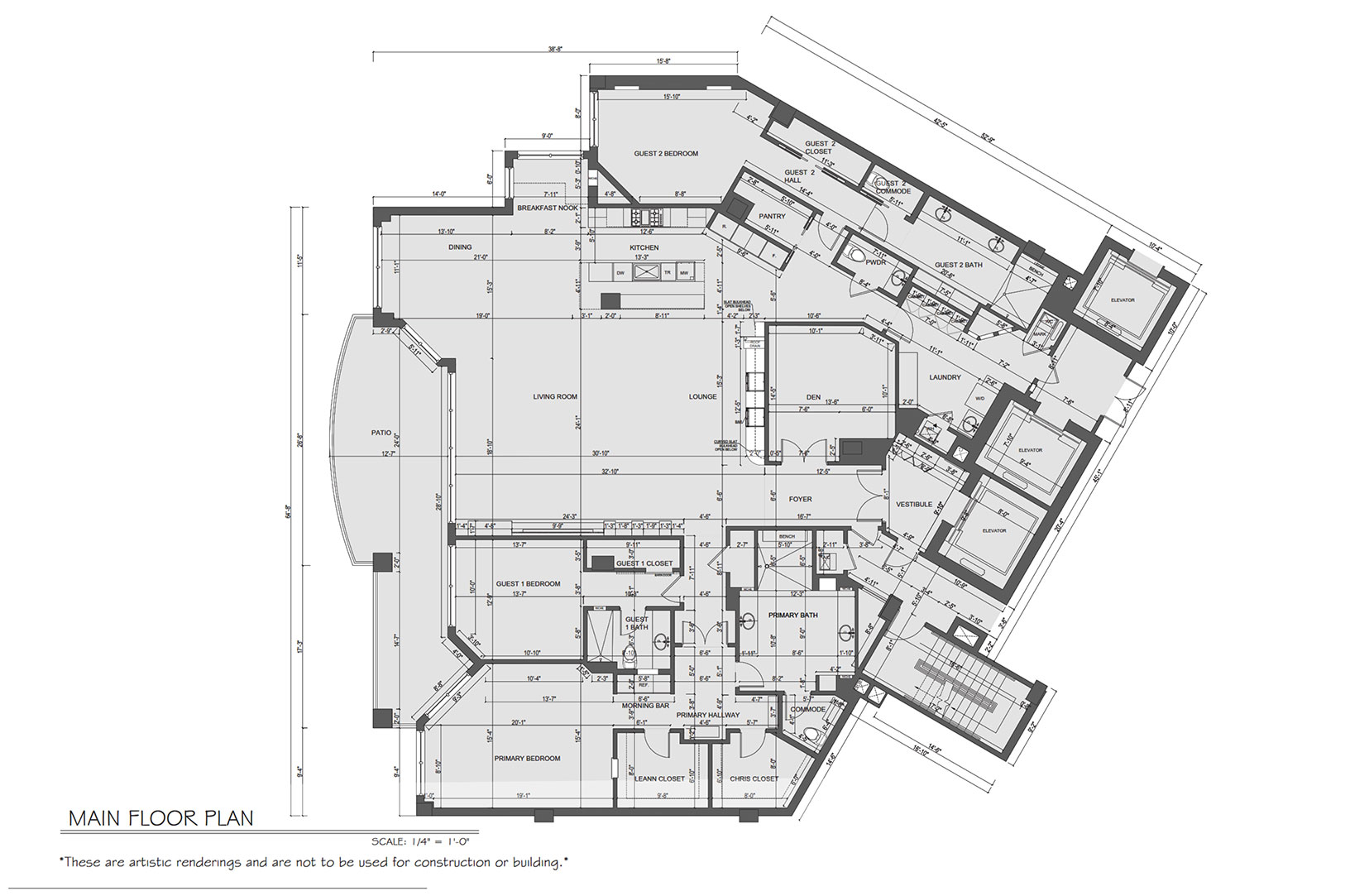

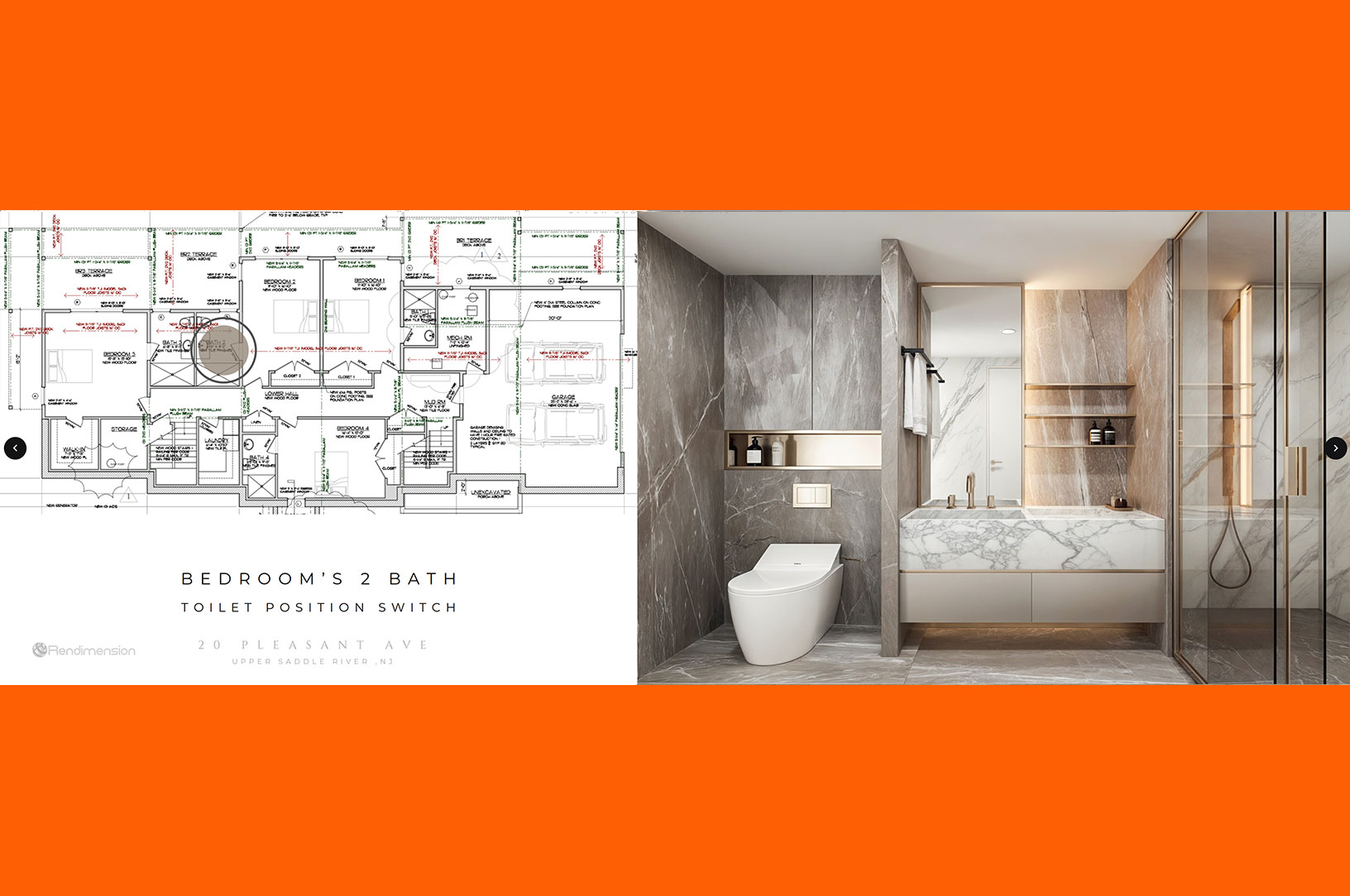

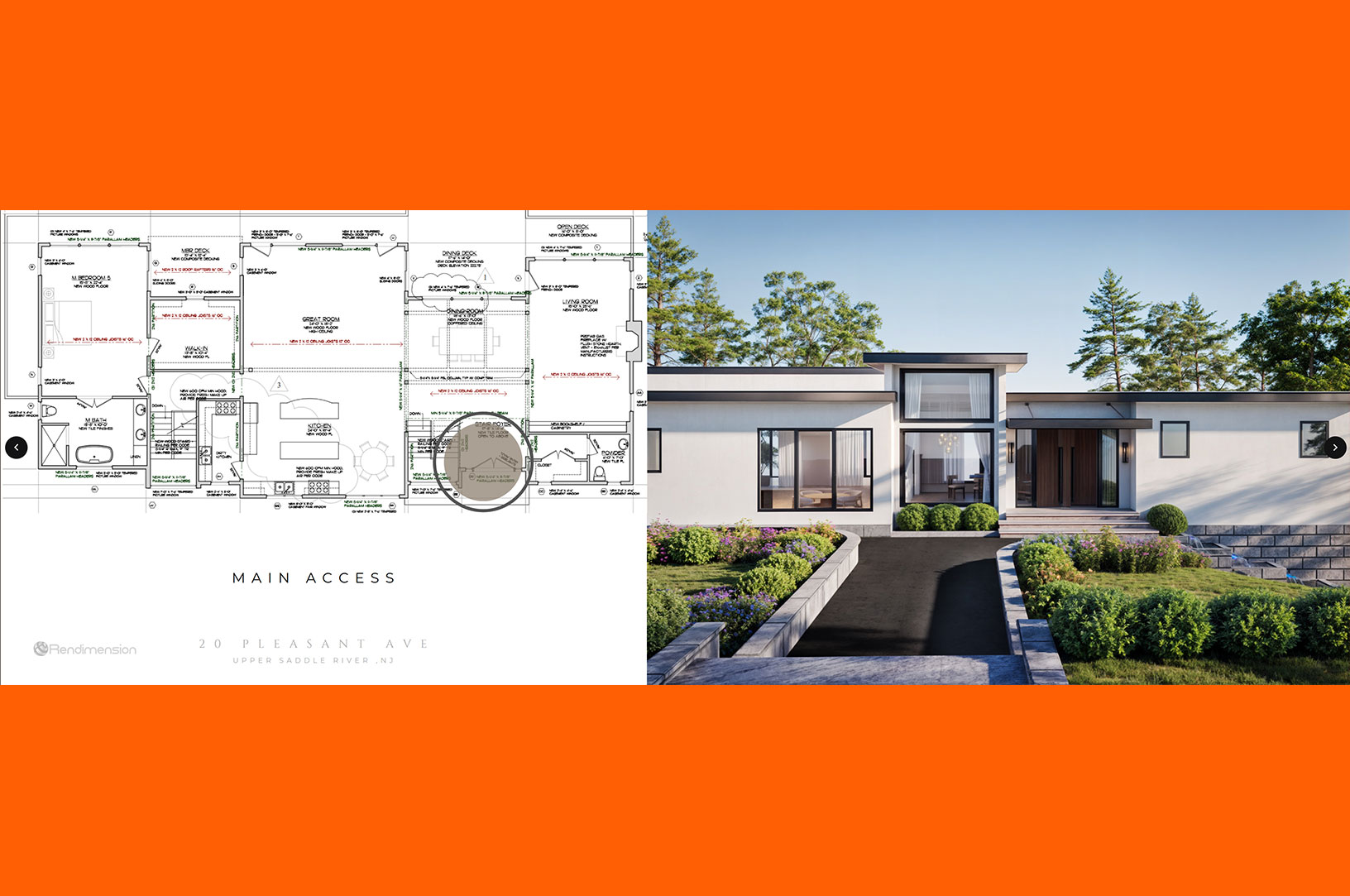

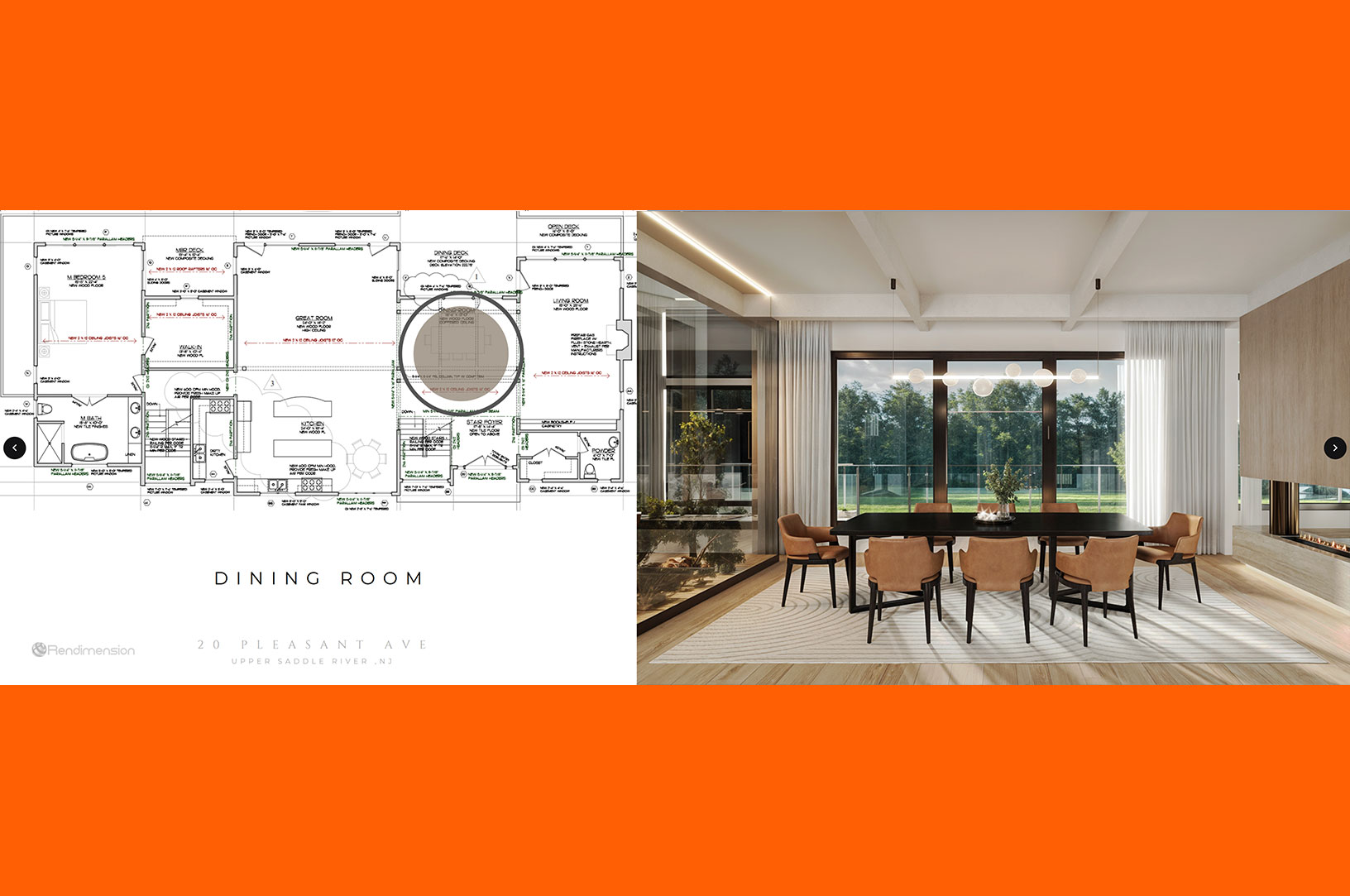

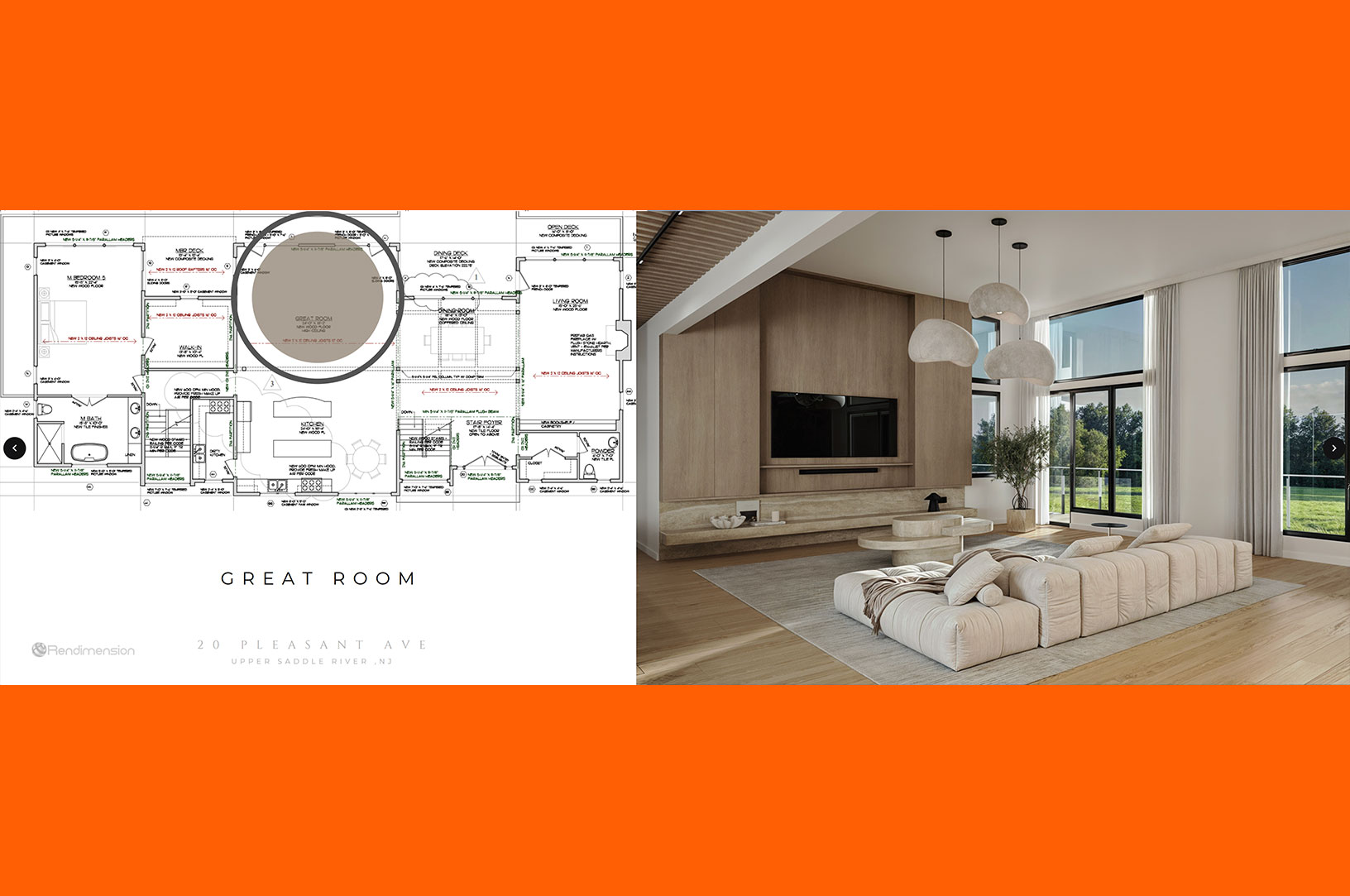

Floor Plans: Scaled floor plan drawings showing room dimensions, wall construction, door and window locations, and key annotations. Produced at scales suitable for design development review and permit submission packages.

Elevations: Exterior and interior elevation drawings showing vertical dimensions, material designations, window and door profiles, and architectural details. Developed from 3D model data for dimensional accuracy.

Site Plans: Site layout drawings showing property boundaries, building footprint, setbacks, parking areas, site circulation, and utility connections, produced for planning submissions and project documentation.

Sections and Details: Building section cuts showing floor-to-floor heights, structural elements, and ceiling conditions, plus enlarged detail drawings for connections, transitions, and specialty conditions requiring clarification beyond plan and elevation views.

All drawings are reviewed against project documentation before delivery. Typical turnaround is 5 to 7 business days per drawing set. Rush delivery is available at 48 hours for time-sensitive permit submissions or design deadlines.

What a Complete Permit Set Actually Contains

Most delays in plan review come from incomplete sheet sets, not from drawing errors. A jurisdiction reviewer works through a checklist, and a missing sheet stops the review regardless of how well the remaining drawings are executed. A residential permit set generally runs 8 to 14 sheets. A commercial or mixed-use set can run 30 to 60 sheets before consultant disciplines are added.

Cover sheet and code summary: Project address, parcel number, applicable code cycle, occupancy classification, construction type, allowable area calculations, and a sheet index. Reviewers open this first, and an inconsistent code summary invites scrutiny across the entire set.

Site plan with setbacks and coverage: Property lines, easements, setback dimensions from each boundary, building footprint, impervious surface calculations, and parking counts where required. Zoning review lives almost entirely on this sheet.

Dimensioned floor plans per level: Room names and areas, wall types keyed to an assembly schedule, door and window tags, plumbing fixture locations, and egress path dimensions. Every tag on the plan needs a matching entry in a schedule somewhere in the set.

Exterior elevations on all four orientations: Finish floor and plate heights, overall building height measured from the code-defined reference point, exterior material designations, and window head heights. Height limits are checked here against the zoning envelope.

Building sections and wall sections: At minimum one longitudinal and one transverse section, plus wall sections at each distinct exterior assembly. Wall sections carry the insulation values, air barrier location, and flashing conditions that energy code review depends on.

Schedules and details: Door, window, and finish schedules; typical details for foundation, roof edge, and openings; and any specialty details called out on the plans. A detail referenced on a plan but absent from the set is one of the most common review comments issued.

Structural, mechanical, electrical, and plumbing sheets are produced by licensed engineers and coordinated into the architectural set. Drafting work covers the architectural sheets and the coordination of consultant backgrounds so that dimensions, column grids, and floor levels agree across every discipline.

CAD Standards, Software, and File Handoff

Drawings that look correct on a printed sheet can still be unusable to the next team that opens the file. Layer names, text styles, and dimension styles determine whether an engineer or contractor can work in your file or has to rebuild it. That rebuild cost is invisible until it appears as a change order.

Layer conventions: Most firms in the United States work from the AIA CAD Layer Guidelines or the NCS layering format. Both use a discipline prefix followed by a major group, so architectural wall linework lands on A-WALL and door symbols on A-DOOR. Files delivered on layers named after the person who drew them are technically complete and practically worthless.

Model space and paper space: Geometry is drawn at full scale in model space and presented through viewports in paper space at the sheet scale. Drawings built entirely in model space with manually scaled text break the moment a sheet needs to be reissued at a different scale.

AutoCAD, Revit, and ArchiCAD interoperability: Native Revit and ArchiCAD files carry parametric data that survives export only partially. When a project moves between platforms, the reliable exchange is IFC for model geometry and DWG for two-dimensional sheets. Expect to re-map materials and to lose parametric relationships on any round trip, and plan the handoff at the start rather than at the deadline.

Delivery formats: PDF for review and permit submission, DWG for teams working in AutoCAD, and DXF where a downstream tool cannot read DWG cleanly. Sheet sets are delivered as both individual sheets and a combined, bookmarked PDF, since most jurisdictions now accept only the combined file for electronic submission.

Where a project also needs three-dimensional deliverables, the same drawing base feeds directly into 3D floor plans and presentation visuals, which avoids modeling the building twice from two sources of truth.

Drafting from Existing Conditions and As-Built Documentation

Renovation, adaptive reuse, and tenant improvement work rarely begins with usable drawings. The original set may be missing, may predate several rounds of undocumented modification, or may exist only as a scanned print at an unknown scale. Before any design work proceeds, someone has to establish what is actually there.

Field measurement and redrawing: Dimensions captured on site are converted into a clean, dimensionally consistent base drawing. Closure checks matter here: a room measured wall to wall should reconcile with the overall building dimension, and a discrepancy that gets buried early propagates through every downstream sheet.

Scanned drawing conversion: Raster prints, PDFs without vector data, and hand-drawn originals are redrawn as accurate vector CAD. Automatic raster-to-vector conversion produces geometry that looks right and measures wrong, which is why redrawing rather than tracing is the defensible approach for anything heading to permit.

Point cloud and scan-to-CAD: Where a laser scan exists, the point cloud becomes the dimensional reference for plans, elevations, and sections. This is the most reliable path for complex geometry, historic structures, and buildings where field access is limited.

As-built documentation also has a second life after construction closes. Owners need accurate record drawings for facility management, future tenant fit-outs, refinancing, insurance, and sale. A building without current as-builts costs more to modify later, and that cost lands on whoever owns it at the time.

What Drives Drafting Cost and Schedule

Drafting is quoted per sheet set rather than per hour on most projects, because a fixed scope protects both sides from the open-ended revision cycles that hourly work invites. The variables that move a quote are consistent across project types.

Completeness of the input: A coordinated design model with resolved dimensions drafts faster than a set of sketches with unresolved conditions. The single largest cost driver is not building size, it is how many decisions remain open when drafting begins.

Sheet count and drawing density: A 2,400 square foot custom home and a 2,400 square foot restaurant fit-out are not comparable. The restaurant carries equipment schedules, grease interceptor details, accessibility clearances, and health department requirements that multiply the sheet count.

Jurisdictional requirements: Submission standards vary sharply between jurisdictions. Some require energy compliance forms embedded in the drawing set, some require separate structural observation sheets, and coastal and high-wind regions add their own documentation. Knowing the local checklist before drafting starts avoids a resubmission cycle that typically costs more than the drafting fee itself.

Revision rounds: Two rounds of revision are standard. Design changes introduced after the set is complete are handled as additional scope, since a plan change late in the process ripples through elevations, sections, schedules, and details simultaneously.

On outsourced drafting specifically, the pricing advantage is real but conditional. It holds when the scope is clearly defined and the input documentation is complete. It disappears when the drafting team has to interpret intent, because interpretation produces drawings that need to be redrawn once the actual intent surfaces.

Residential, Commercial, and Mixed-Use Differences

Residential: Prescriptive code paths cover most single-family work, which keeps the sheet count down. Complexity concentrates in custom conditions, structural openings, and energy compliance. Review timelines are typically the shortest of the three.

Commercial: Occupancy classification drives everything downstream, including egress width, fixture counts, fire separation, and accessibility. Accessibility compliance is documented across nearly every sheet rather than isolated on one, and it is the most frequent source of correction comments.

Mixed-use: The hardest coordination problem of the three. Separate occupancies stacked in one structure require documented fire separation between uses, independent egress paths, and often separate utility services. Structural transfer at the podium level has to be documented in the architectural set even though it is engineered elsewhere.

Multifamily and mixed-use projects that will also be marketed before completion usually need the drawing set and the marketing visuals developed in parallel. See architectural rendering services for the presentation side, and commercial real estate rendering for investor and leasing material.

Project Phases and What Gets Drawn at Each Stage

Drafting scope is defined by phase, and confusion about which phase a project is actually in causes more budget overrun than any drawing issue. A set drawn to construction document standards during schematic design wastes effort, because the design will change. A set drawn to schematic standards and submitted for permit gets rejected.

Schematic design: Overall building organization, approximate dimensions, and relationships between spaces. Drawings communicate intent rather than construction information. Dimensions are shown to the nearest reasonable increment and assemblies are generic. The purpose is agreement on the concept before detail is invested.

Design development: Dimensions resolve to actual construction dimensions, wall assemblies get defined, and the structural grid locks. Window and door types are selected. Consultant coordination begins in earnest here, because moving a column after this phase costs substantially more than moving it before.

Construction documents: Every dimension, every assembly, every schedule entry, and every detail required to build and to price the project. This is the phase where sheet count multiplies, and it is where the majority of drafting hours land on any project.

Permit submission: The construction document set formatted to the jurisdiction's submission requirements, including any required compliance forms, calculations, and reviewer checklists. Some jurisdictions require a permit set that differs in content from the set issued to contractors for pricing.

Construction administration: Revised sheets issued as bulletins or addenda when field conditions or design changes require documentation. Each revision carries a revision cloud, a delta tag, and a dated revision block, and the sheet index has to reflect the current issue of every sheet.

Record drawings: The final set updated to reflect what was actually built, incorporating contractor markups and field changes. This is the document the owner keeps, and it becomes the starting point for every future modification to the building.

Coordination and Quality Control Before Submission

Most correction comments issued by plan reviewers are not design failures. They are internal inconsistencies inside the set: a dimension that does not add up, a tag without a schedule entry, a detail reference pointing at a sheet that no longer exists. Every one of them is catchable before submission, and every one of them costs a review cycle when it is not.

Dimensional closure: Interior dimension strings must sum to the overall building dimension on every plan. When they do not, the discrepancy usually traces back to a wall thickness assumption made early and never revisited. This check is run per level, because levels drift independently.

Cross-sheet reference integrity: Every section marker, detail bubble, and elevation tag has to resolve to a sheet that exists and to the correct drawing on that sheet. Renumbering sheets late in a project breaks references silently, which is why the check is repeated after any sheet reorganization.

Schedule reconciliation: Door, window, and finish tags on plans are compared against schedule entries in both directions. An orphan tag and an orphan schedule row are equally common and equally disruptive during construction pricing.

Vertical agreement: Floor-to-floor heights, plate heights, and finish floor elevations shown in sections and elevations must agree with each other and with the structural drawings. Conflicts here surface as field problems rather than review comments, which makes them more expensive.

Consultant background currency: Structural, mechanical, electrical, and plumbing consultants draw on architectural backgrounds. When the architectural plan changes and the background is not reissued, consultant drawings document a building that no longer exists. Background issue dates are tracked and verified before any set goes out.

This review runs against the full set before delivery. It is unglamorous work and it is the difference between a set that clears review on the first pass and a set that returns with two pages of comments and a four-week delay attached.

Common Questions About Architectural Drafting Services

Do drafting services replace an architect? No. Drafting produces the drawings. In most jurisdictions a licensed architect or engineer must stamp the set for permit submission on anything beyond limited residential scopes. Drafting support reduces the hours a licensed professional spends on production, it does not remove the stamp requirement.

How much do architectural drafting services cost? Pricing is scoped per drawing set rather than quoted from a rate card, because sheet count, project type, and jurisdictional requirements move the number more than square footage does. A defined scope with complete input documentation produces a fixed quote.

What is the difference between 2D drafting and 3D drafting services? Two-dimensional drafting produces the plans, elevations, and sections that permit review requires. Three-dimensional drafting builds a coordinated model from which those sheets are generated, which catches conflicts earlier and feeds directly into visualization. Most projects benefit from the model-based approach when any presentation material is also needed.

Can you work in ArchiCAD or Revit rather than AutoCAD? Yes. Deliverables are produced to match the platform the project team already uses. The important decision is made at the start, since moving a project between platforms mid-stream loses parametric data and costs time that the schedule rarely has.

How long does a drawing set take? Typical turnaround is 5 to 7 business days per set, with 48-hour rush available. Larger commercial sets are delivered in phases so that review can begin on completed sheets while the remainder is in production.

Do you provide drafting services near me? Drafting is delivered nationwide and does not depend on proximity, since files move electronically and submissions are electronic in most jurisdictions. What matters is familiarity with the submission requirements of your specific jurisdiction, which is verified before drafting begins.

Outsourced Drafting: When It Works and When It Does Not

Firms outsource drafting for capacity, for cost, or for both. The decision succeeds or fails on how well the scope is defined before work starts, not on the hourly rate difference.

Overflow capacity: A firm with more work than production staff sends complete, well-defined sets out and keeps design and client contact in house. This is the cleanest arrangement, because the scope is a known quantity and the deliverable is unambiguous.

Dedicated production support: An ongoing arrangement where the drafting team learns the firm's standards, title block, and detail library. Efficiency improves over the first few projects as conventions stop needing to be explained. Worth the ramp-up only when volume is steady.

Single-project engagement: Common for developers and owners without an in-house architectural team, and for one-off renovation or tenant improvement work. Requires the most upfront documentation, since there is no accumulated context to draw on.

Where it goes wrong: Outsourcing an unresolved design. When decisions are still open, the drafting team either guesses or stops to ask, and both outcomes cost more than doing the work in house would have. The cost advantage is real only when the input is complete. Resolve the design first, then send it out.
